Martin Audio Adorn ACS-55T

Name: Martin Audio Adorn ACS-55T
Brand: Martin Audio
SKU: 58123
Availability: InStock

As part of the Martin Audio Adorn commercial series, the ACS-55T is a compact, two-way ceiling speaker designed for background and foreground applications that require premium performance and cost competitiveness.

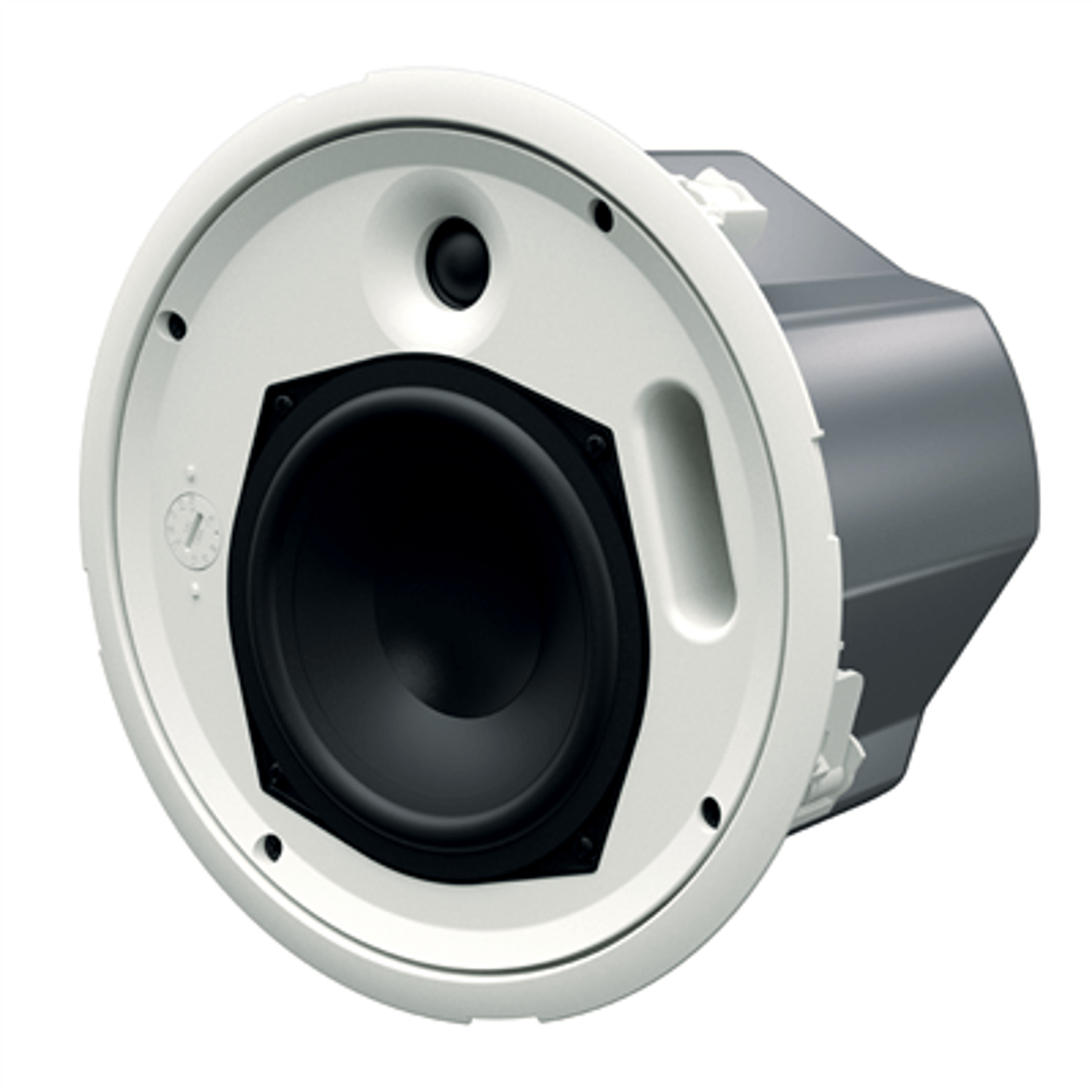

The Martin Audio Adorn ACS-55T brings full-frequency response, consistent coverage and intelligibility to a wide range of architectural environments — from hotels and concourses to retail outlets, bars and restaurants.Comprising a 5.25” (135mm) LF driver and a 0.75” (19mm) silk-dome tweeter, the CS-55T produces 113dB peak output at 1 metre and has a high-fidelity sonic character ideal for both music and speech reproduction. Its ported bass reflex design and backcan with generous internal volume maximises low frequency output and delivers strong bass that extends down to 62Hz. The wide 150° conical coverage of the Martin Audio Adorn ACS-55T reduces the number of speakers required for even coverage — leading to a reduction in installation cost.

It incorporates a high-quality transformer for 70V/100V line operation, with transformer taps selected by a rotary switch accessible behind the powder-coated, perforated steel grille. The switch also provides for 16-ohm low impedance operation — enabling four or more speakers to be driven in parallel from a single amplifier channel. For full-bandwidth protection, the low and high-frequency sections are individually protected against overload by auto-resetting thermal fuses.The grille is bezel-less for a clean look, its bayonet fitting is easy to remove without the use of tools and finished in white (RAL9016) to match ADORN on-wall loudspeakers and may also be painted to blend with any interior design style.

***Check our DOWNLOADS section below for more info.***

Read more

Specifications

Driver Configuration	2-way
DSP	No
Bluetooth Connectivity	No
Connectivity	Analog
Powered/non-powered	Non-powered
Min. Frequency (Hz)	70
Max. SPL (dB)	113
WiFi Connectivity	No
Max. Frequency (kHz)	20
Enclosure	Plastic
Application	Install
Weatherized	No
Brand	Martin Audio

Downloads

Martin Audio Adorn ACS 55T Data Sheet.pdf

Martin Audio Adorn Catalog.pdf
