Article number:
63452

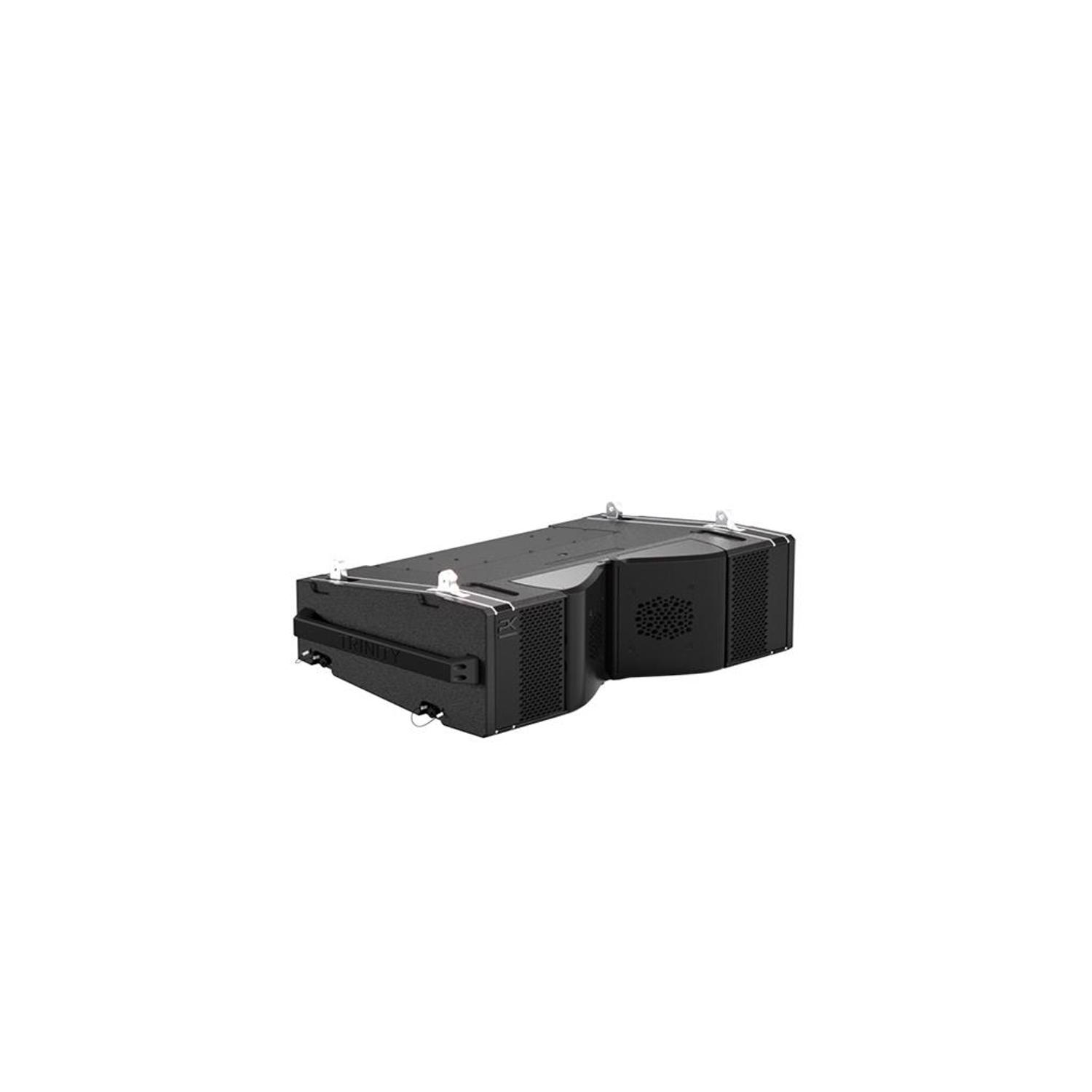

PK Sound T10
Your Key to the PK Alliance.
T10 robotic system owners are the only users on the planet with access to Trinity Black via the PK Alliance global partner network.
T10 is a member of the industry’s first robotically controlled line source family. Stunning SPL and clarity can be precisely controlled in both the vertical and horizontal planes, offering system operators maximum flexibility in making coverage adjustments after the array is flown. Onboard inclinometers and network-based Auto-Array within PK .dynamics software enable each module to recognize its position and angle within the system, improving accuracy, efficiency of deployment, and safety.
Dual bandpass-loaded 10” transducers manage low-frequency response. The mid-frequency band is supported by two 6.5” midrange transducers affixed to the patented Coherent Midrange Integrator (CMI). A dual-diaphragm high-frequency transducer, coupled directly to an integrated planar waveguide, significantly reduces distortion across the high-frequency band. A 3,000 W Class D amplifier maximizes headroom while maintaining crystal clear audio and exceptional output.
The CMI Waveguide seamlessly combines mid and high frequencies, working in tandem with precisely spaced low-frequency apertures for smooth and controlled directivity. It allows for variable adjustability from 60°-120° both symmetrically and asymmetrically so that system designers and technicians can remotely shape the radial directivity of the array relative to the coverage requirements of any event or venue.
Flown straight, the array’s directivity is then configured remotely using industrial linear actuators with a duty cycle of up to 109 years. Horizontal angles can be set to over 30 variable positions allowing for mechanical optimization. Vertical angles are variable with 0.1° accuracy. Finally, a combination of FIR and IIR filters is applied to ensure smooth frequency response throughout the listening area.
Own your robotic advantage
T10 medium-format robotic array elements offer incredible versatility for mid-to-large sized events where long throw is required.
Outfitted with the most advanced components on the market, including industrial-grade robotic actuators, onboard electronics and DSP, inclinometers, IR sensors, and the patented Coherent Midrange Integrator (CMI) Waveguide, T10 brings the technological advantage of the world's first robotic line source system to the widest-possible array of projects.
Specifications
Maximum SPL: 146 dB Horizontal Directivity: 60°-120° Robotic Directivity: Frequency Response: 40 Hz-20 kHz Robotic Actuator Duty Cycle: 80,000 Actuations (109 years) Horizontal Resolution: 5° Symmetric & Asymmetric Vertical Adjustment: 0°-12° Robotic Directivity Vertical Resolution: 0.1° Increments Horizontal Thrust: 750 N Vertical Thrust: 2500 N IP Rating: IP69K (static), IP66 (dynamic) Duty Cycle: 80,000 Actuations (109 years) Low Frequency: 2 x 10" Neodymium Bandpass Loaded Mid Frequency: 2 x 6.5" on Coherent Midrange Integrator High Frequency: 1 x 4" Dual Diaphragm Planar Wave Amplifier: 4-Channel Class D Amplifier Power: 3000 W Operating Voltage: Auto-Switching 100-240 V, 50/60 Hz Power Consumption: 700 W Network: Proprietary Input Selection: Analog/AESAudio/Network Multipin Connector: IP65 Power Connector: powerCON TRUE1 – IP65 Weight: 47.6 kg/105 lb Dimensions (W x H x D): 980 x 250 x 561 mm / 38.58 x 9.84 x 22.09 in Max Line Length: 24 Modules Environmental: IP42 (front), IP43 (rear) Module Construction: Void-Free, High-Grade Baltic Birch Rigging Construction: 6061-T6 Aluminum External Coating: EXL Polyurea Grill: Powder Coated Aluminum Additional: Maximum SPL with Pink Noise Crest Factor 4 at 1 m (with limiters & DSP active) Read more
T10 robotic system owners are the only users on the planet with access to Trinity Black via the PK Alliance global partner network.
T10 is a member of the industry’s first robotically controlled line source family. Stunning SPL and clarity can be precisely controlled in both the vertical and horizontal planes, offering system operators maximum flexibility in making coverage adjustments after the array is flown. Onboard inclinometers and network-based Auto-Array within PK .dynamics software enable each module to recognize its position and angle within the system, improving accuracy, efficiency of deployment, and safety.
Dual bandpass-loaded 10” transducers manage low-frequency response. The mid-frequency band is supported by two 6.5” midrange transducers affixed to the patented Coherent Midrange Integrator (CMI). A dual-diaphragm high-frequency transducer, coupled directly to an integrated planar waveguide, significantly reduces distortion across the high-frequency band. A 3,000 W Class D amplifier maximizes headroom while maintaining crystal clear audio and exceptional output.
The CMI Waveguide seamlessly combines mid and high frequencies, working in tandem with precisely spaced low-frequency apertures for smooth and controlled directivity. It allows for variable adjustability from 60°-120° both symmetrically and asymmetrically so that system designers and technicians can remotely shape the radial directivity of the array relative to the coverage requirements of any event or venue.
Flown straight, the array’s directivity is then configured remotely using industrial linear actuators with a duty cycle of up to 109 years. Horizontal angles can be set to over 30 variable positions allowing for mechanical optimization. Vertical angles are variable with 0.1° accuracy. Finally, a combination of FIR and IIR filters is applied to ensure smooth frequency response throughout the listening area.
Own your robotic advantage
T10 medium-format robotic array elements offer incredible versatility for mid-to-large sized events where long throw is required.
Outfitted with the most advanced components on the market, including industrial-grade robotic actuators, onboard electronics and DSP, inclinometers, IR sensors, and the patented Coherent Midrange Integrator (CMI) Waveguide, T10 brings the technological advantage of the world's first robotic line source system to the widest-possible array of projects.
Specifications
Maximum SPL: 146 dB Horizontal Directivity: 60°-120° Robotic Directivity: Frequency Response: 40 Hz-20 kHz Robotic Actuator Duty Cycle: 80,000 Actuations (109 years) Horizontal Resolution: 5° Symmetric & Asymmetric Vertical Adjustment: 0°-12° Robotic Directivity Vertical Resolution: 0.1° Increments Horizontal Thrust: 750 N Vertical Thrust: 2500 N IP Rating: IP69K (static), IP66 (dynamic) Duty Cycle: 80,000 Actuations (109 years) Low Frequency: 2 x 10" Neodymium Bandpass Loaded Mid Frequency: 2 x 6.5" on Coherent Midrange Integrator High Frequency: 1 x 4" Dual Diaphragm Planar Wave Amplifier: 4-Channel Class D Amplifier Power: 3000 W Operating Voltage: Auto-Switching 100-240 V, 50/60 Hz Power Consumption: 700 W Network: Proprietary Input Selection: Analog/AESAudio/Network Multipin Connector: IP65 Power Connector: powerCON TRUE1 – IP65 Weight: 47.6 kg/105 lb Dimensions (W x H x D): 980 x 250 x 561 mm / 38.58 x 9.84 x 22.09 in Max Line Length: 24 Modules Environmental: IP42 (front), IP43 (rear) Module Construction: Void-Free, High-Grade Baltic Birch Rigging Construction: 6061-T6 Aluminum External Coating: EXL Polyurea Grill: Powder Coated Aluminum Additional: Maximum SPL with Pink Noise Crest Factor 4 at 1 m (with limiters & DSP active) Read more
Your Key to the PK Alliance.
T10 robotic system owners are the only users on the planet with access to Trinity Black via the PK Alliance global partner network.
T10 is a member of the industry’s first robotically controlled line source family. Stunning SPL and clarity can be precisely controlled in both the vertical and horizontal planes, offering system operators maximum flexibility in making coverage adjustments after the array is flown. Onboard inclinometers and network-based Auto-Array within PK .dynamics software enable each module to recognize its position and angle within the system, improving accuracy, efficiency of deployment, and safety.
Dual bandpass-loaded 10” transducers manage low-frequency response. The mid-frequency band is supported by two 6.5” midrange transducers affixed to the patented Coherent Midrange Integrator (CMI). A dual-diaphragm high-frequency transducer, coupled directly to an integrated planar waveguide, significantly reduces distortion across the high-frequency band. A 3,000 W Class D amplifier maximizes headroom while maintaining crystal clear audio and exceptional output.
The CMI Waveguide seamlessly combines mid and high frequencies, working in tandem with precisely spaced low-frequency apertures for smooth and controlled directivity. It allows for variable adjustability from 60°-120° both symmetrically and asymmetrically so that system designers and technicians can remotely shape the radial directivity of the array relative to the coverage requirements of any event or venue.
Flown straight, the array’s directivity is then configured remotely using industrial linear actuators with a duty cycle of up to 109 years. Horizontal angles can be set to over 30 variable positions allowing for mechanical optimization. Vertical angles are variable with 0.1° accuracy. Finally, a combination of FIR and IIR filters is applied to ensure smooth frequency response throughout the listening area.
Own your robotic advantage
T10 medium-format robotic array elements offer incredible versatility for mid-to-large sized events where long throw is required.
Outfitted with the most advanced components on the market, including industrial-grade robotic actuators, onboard electronics and DSP, inclinometers, IR sensors, and the patented Coherent Midrange Integrator (CMI) Waveguide, T10 brings the technological advantage of the world's first robotic line source system to the widest-possible array of projects.
Specifications
Maximum SPL: 146 dB Horizontal Directivity: 60°-120° Robotic Directivity: Frequency Response: 40 Hz-20 kHz Robotic Actuator Duty Cycle: 80,000 Actuations (109 years) Horizontal Resolution: 5° Symmetric & Asymmetric Vertical Adjustment: 0°-12° Robotic Directivity Vertical Resolution: 0.1° Increments Horizontal Thrust: 750 N Vertical Thrust: 2500 N IP Rating: IP69K (static), IP66 (dynamic) Duty Cycle: 80,000 Actuations (109 years) Low Frequency: 2 x 10" Neodymium Bandpass Loaded Mid Frequency: 2 x 6.5" on Coherent Midrange Integrator High Frequency: 1 x 4" Dual Diaphragm Planar Wave Amplifier: 4-Channel Class D Amplifier Power: 3000 W Operating Voltage: Auto-Switching 100-240 V, 50/60 Hz Power Consumption: 700 W Network: Proprietary Input Selection: Analog/AESAudio/Network Multipin Connector: IP65 Power Connector: powerCON TRUE1 – IP65 Weight: 47.6 kg/105 lb Dimensions (W x H x D): 980 x 250 x 561 mm / 38.58 x 9.84 x 22.09 in Max Line Length: 24 Modules Environmental: IP42 (front), IP43 (rear) Module Construction: Void-Free, High-Grade Baltic Birch Rigging Construction: 6061-T6 Aluminum External Coating: EXL Polyurea Grill: Powder Coated Aluminum Additional: Maximum SPL with Pink Noise Crest Factor 4 at 1 m (with limiters & DSP active) Read more
T10 robotic system owners are the only users on the planet with access to Trinity Black via the PK Alliance global partner network.
T10 is a member of the industry’s first robotically controlled line source family. Stunning SPL and clarity can be precisely controlled in both the vertical and horizontal planes, offering system operators maximum flexibility in making coverage adjustments after the array is flown. Onboard inclinometers and network-based Auto-Array within PK .dynamics software enable each module to recognize its position and angle within the system, improving accuracy, efficiency of deployment, and safety.
Dual bandpass-loaded 10” transducers manage low-frequency response. The mid-frequency band is supported by two 6.5” midrange transducers affixed to the patented Coherent Midrange Integrator (CMI). A dual-diaphragm high-frequency transducer, coupled directly to an integrated planar waveguide, significantly reduces distortion across the high-frequency band. A 3,000 W Class D amplifier maximizes headroom while maintaining crystal clear audio and exceptional output.
The CMI Waveguide seamlessly combines mid and high frequencies, working in tandem with precisely spaced low-frequency apertures for smooth and controlled directivity. It allows for variable adjustability from 60°-120° both symmetrically and asymmetrically so that system designers and technicians can remotely shape the radial directivity of the array relative to the coverage requirements of any event or venue.
Flown straight, the array’s directivity is then configured remotely using industrial linear actuators with a duty cycle of up to 109 years. Horizontal angles can be set to over 30 variable positions allowing for mechanical optimization. Vertical angles are variable with 0.1° accuracy. Finally, a combination of FIR and IIR filters is applied to ensure smooth frequency response throughout the listening area.
Own your robotic advantage
T10 medium-format robotic array elements offer incredible versatility for mid-to-large sized events where long throw is required.
Outfitted with the most advanced components on the market, including industrial-grade robotic actuators, onboard electronics and DSP, inclinometers, IR sensors, and the patented Coherent Midrange Integrator (CMI) Waveguide, T10 brings the technological advantage of the world's first robotic line source system to the widest-possible array of projects.
Specifications
Maximum SPL: 146 dB Horizontal Directivity: 60°-120° Robotic Directivity: Frequency Response: 40 Hz-20 kHz Robotic Actuator Duty Cycle: 80,000 Actuations (109 years) Horizontal Resolution: 5° Symmetric & Asymmetric Vertical Adjustment: 0°-12° Robotic Directivity Vertical Resolution: 0.1° Increments Horizontal Thrust: 750 N Vertical Thrust: 2500 N IP Rating: IP69K (static), IP66 (dynamic) Duty Cycle: 80,000 Actuations (109 years) Low Frequency: 2 x 10" Neodymium Bandpass Loaded Mid Frequency: 2 x 6.5" on Coherent Midrange Integrator High Frequency: 1 x 4" Dual Diaphragm Planar Wave Amplifier: 4-Channel Class D Amplifier Power: 3000 W Operating Voltage: Auto-Switching 100-240 V, 50/60 Hz Power Consumption: 700 W Network: Proprietary Input Selection: Analog/AESAudio/Network Multipin Connector: IP65 Power Connector: powerCON TRUE1 – IP65 Weight: 47.6 kg/105 lb Dimensions (W x H x D): 980 x 250 x 561 mm / 38.58 x 9.84 x 22.09 in Max Line Length: 24 Modules Environmental: IP42 (front), IP43 (rear) Module Construction: Void-Free, High-Grade Baltic Birch Rigging Construction: 6061-T6 Aluminum External Coating: EXL Polyurea Grill: Powder Coated Aluminum Additional: Maximum SPL with Pink Noise Crest Factor 4 at 1 m (with limiters & DSP active) Read more
Specifications
| Powered/non-powered | Powered |
| Application | Touring |
| Brand | PK Sound |
